Perl X Mold
OREGON LABWARE

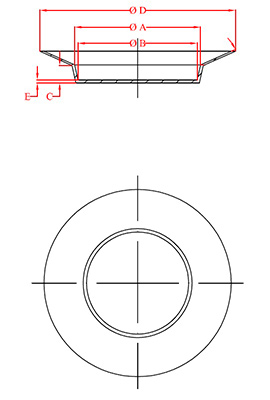

Technical Characteristics
| Stock# | Top Dia | Bottom Dia | Height | Total Dia | Base Thickness | Weight |
|---|---|---|---|---|---|---|
| A (mm) | B (mm) | C (mm) | D(mm) | E(mm) | (g) | |
| PM1400 | 32 | 30.5 | 3.5 | 55 | 1.0 | 40 |
| PM1401 | 32 | 30.5 | 3.5 | 65 | 1.0 | 50 |
| PM1402 | 32 | 30.5 | 4.0 | 65 | 1.0 | 50 |
| PM1403 | 37 | 34.5 | 3.5 | 65 | 1.0 | 50 |
| PM1404 | 37 | 35 | 4.3 | 55 | 1.0 | 50 |
| PM1405 | 40 | 38.5 | 4.5 | 65 | 1.0 | 50 |
| PM1406 | 40.5 | 39.5 | 3.5 | 65 | 1.0 | 58 |
| PM1407 | 41.5 | 39.5 | 3.5 | 65 | 1.0 | 50 |
