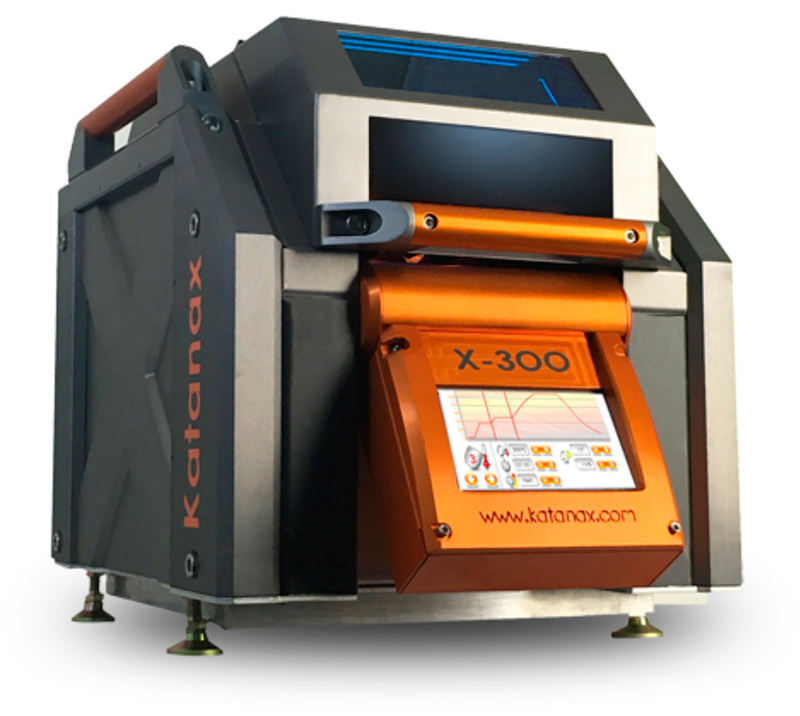

Katanax X-300

OREGON LABWARE

The Katanax X-300 fusion equipment is the new reference in electric fusion. It combines speed an total control of the working temperature. The X-300 is available in 3 versions of 1, 2 and 3 positions, processing 3 samples simultaneously, ensuring a throughput capacity of up to 15 samples per hour, as well as being extremely precise and easy to use. It is indicated for all types of users, experients or beginners, its robust and modern design easily adapts to the needs of the laboratories.

Features

- Entirely automated, cold-to-cold
- Robust and resistent
- Adaptable to different laboratory needs
- 1, 2 or 3 position equipment, with the possibility of upgrading.
- Adjustable Touch Screen
- Fast heating
- Cartridge type for easy replacement of heating elements
- Heating element can be changed individually
- Single-phase power (No need for three-phase)

Accuracy

- Extremely precise temperature control, through the new DTP system and automatic energy compensation for each heating element.
- High performance oven, heats up quickly
- Real-time temperature display
- Status light, red when processing, blue when completed
- All crucibles and molds are at exactly the same temperature

Safety

- Automatic protection lock integrated in the door, with safety visor
- Minimal heat dissipation
- Does not use gas

Versatility

- Produces glass beads for FRX
- Also prepare solutions, including peroxide and pyrosulfate, without modifications
- Prepares up to three solutions for ICP or AA
- Unit ready to fuse through pre-recorded methods for oxides, minerals, metals, alloys, sulfides, fluorides and more.
- Can perform solid or liquid oxidations

Productivity

- Processes 3 samples simultaneously
- Produces up to 15 samples per hour
- Initial heating < 15 min
- Productivity increases because the user can set a temperature that will be maintained between fusions

Simplicity

- Easy installation
- An expandable, smart and advanced oven
- Touch-screen navigation with simple icons
- Graphical and intuitive interface in several languages
- Free Virtual Maintenance; easy access to the components

Technical specifications:

Voltage: 195-250 VAC / (50-60 Hz)
Power (max): 3000 W
Temperature: 50-1200°C
Height: 51 cm [20″]
Width: 48 cm [19″]
Depth: 63 cm [25″]
Mass: 45 kg [99 lbs]

Installation

Installation is fairly simple:

1. Run a 220 VAC wire from the 15A breaker box to the installation location. (You probably already have a socket like this in your lab.)
2. Plug the Fluxer into this standard wall outlet and turn on the equipment.
3. It’s ready. Enjoy!
