Automata

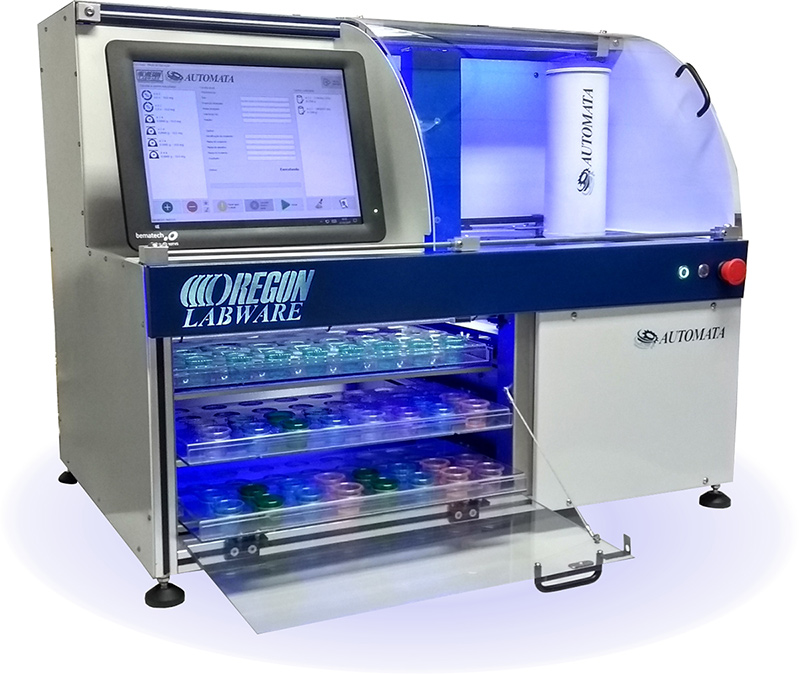

Continuing our policy of Innovation and pioneerism , we are launching an equipment that will certainly be a differential in the market of sample preparation for X-ray Fluorescence analysis, the new Automatic Flux Weighing Equipment:

Feactures:

• • Programming of individual weighing by vial or by lot

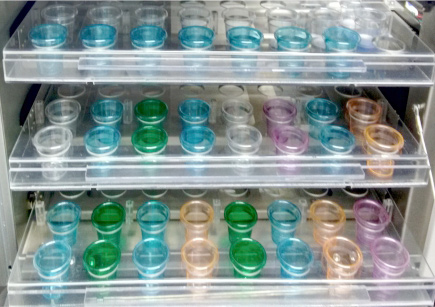

  • Capacity for up to 96 vials
  • Programmable tolerance of up to 1.0mg
  • Operator independent, fully programmable
  • Touchscreen Interface
  • Calculation of the sample/flux mass ratio, no need to weigh the sample
  • Exports the file of sample/flux ratio to each weighing vial
  • Fully safe, automatic locking of doors during operation
  • Integrated diagnostic software
  • Network connection to import and export the vial tare weight
  • 100% National Equipment.

Flux Dosing

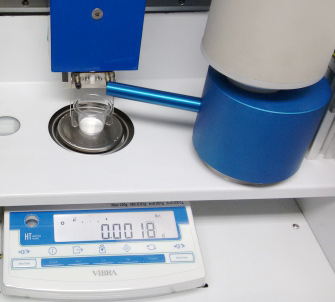

Automata can be programmed to the flux dosing with a precision of up to 1,0mg.

With Automata, the repeatability of the weighings is guaranteed.

The process will always be standardized, as it eliminates problems caused by errors in weighing, which cause variation in dilution, in addition to the interface with LIMS which makes the process fully traceable and thus much more reliable.

Flux dosing + Sample

Automata stores the weigh of the vials, alowing to add a specific volume of the samples and the equipment calculates the necessary amount of flux to maintain the standard dilution and/or ratio (flux/sample).

Eliminating the manual process of weighing the mineral sample in the analytical balance, gaining even more time and productivity in the process.

Interface

• • Interface with touchscreen control with the most cutting-edge features
  • All programming process and parameters adjustments (weigh, tolerance and vials quantity, etc) are fast and easily done and with a simple touch in the screen
  • Programming of new works, even with the equipment executing a dosing list
  • Pre-programmed lists stay stored and can be used at any time, facilitating the routine programming, sometimes repetitive.

Safety

• • Equipment with safety lock on the doors, does not allow access to the moving parts during operation
  • Sensor detectors that prevent the operation of the equipment in case of open doors
  • Automatic shutdown in case of a break in security.
