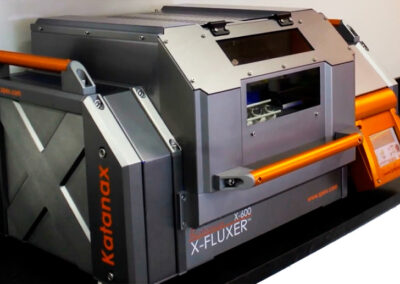

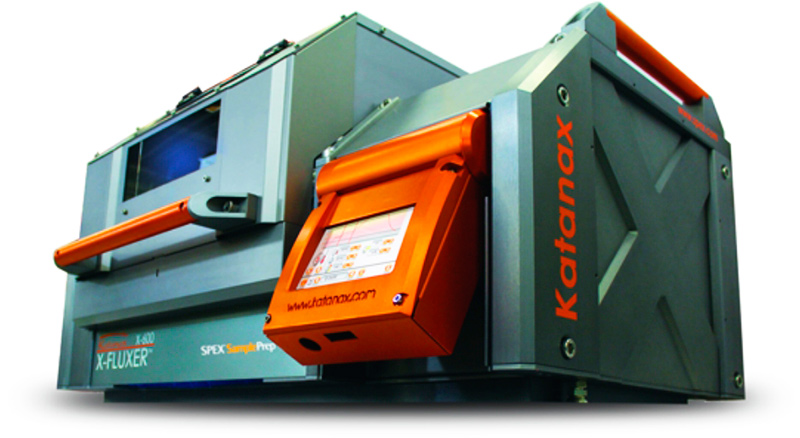

Katanax X-600

OREGON LABWARE

The Katanax^® X-600 fluxer is the next generation in electric fusion, offering new enhanced features for unparalleled results. Our fluxers combine exceptional fusion accuracy with all the advantages of electric power combined with speed, simplicity and a robust design for the experienced or novice user.

Special features

Innovative heating elements
- Impervious to flux and other chemical projections
- Robust and non-brittle (instrument can be moved without element damage)
- Cartridge type for easy replacement
- Can be changed individually, without interruption

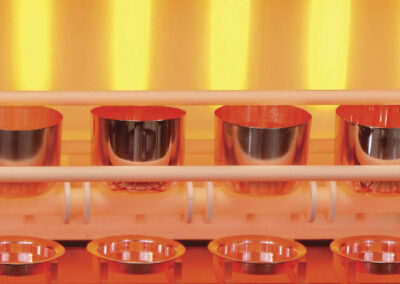

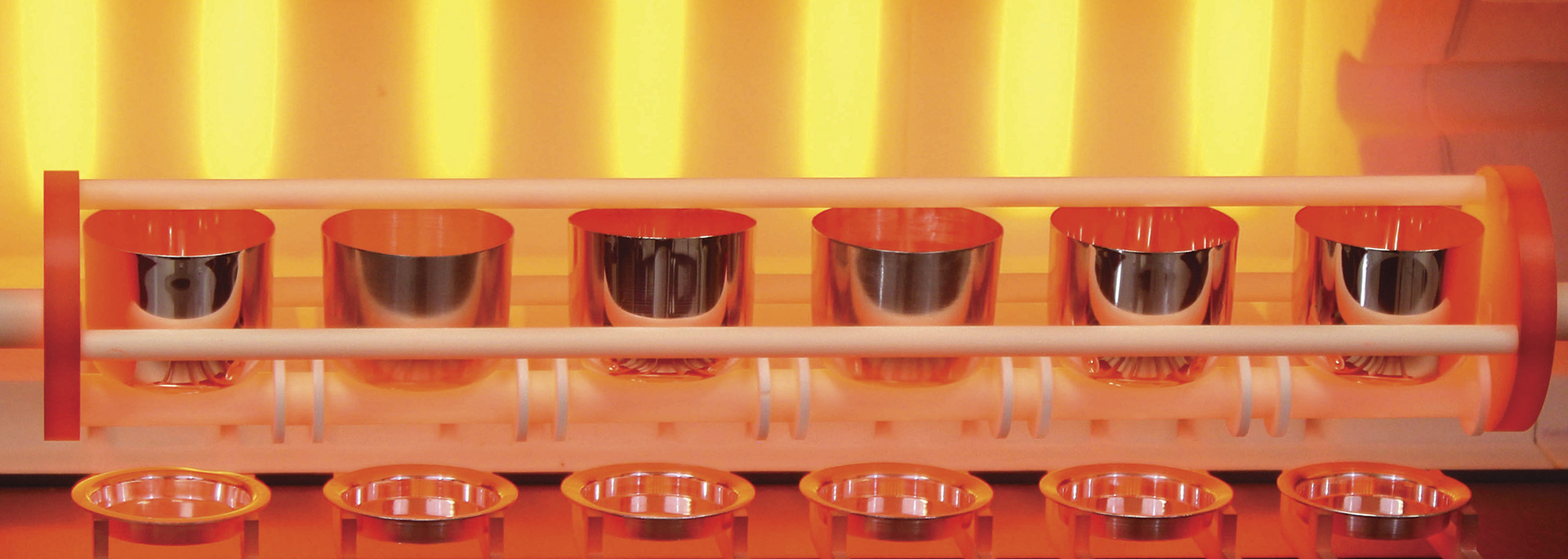

Advanced furnace

Dynamic Temperature Profile (DTP) to ensure uniform temperature (patent pending)
Individual element automatic power compensation (patent pending)
Fast heat-up (<15 minutes)
Strict use of ceramic eliminates metal contamination

Other

Industrial PLC interface (does not depend on Windows updates)
Requires no external supplies (no power supply box, no cooling fluids)
Single-phase power (no need for 3-phase)
Tiltable interface screen for various user heights
Ambient status light (red when processing, blue when completed)

Reliability

Built with the most demanding lab in mind
Heating elements impervious to flux and chemical projections
Robust, all-ceramic platinumware holders
Industrial-grade motors and electronics

High-throughput

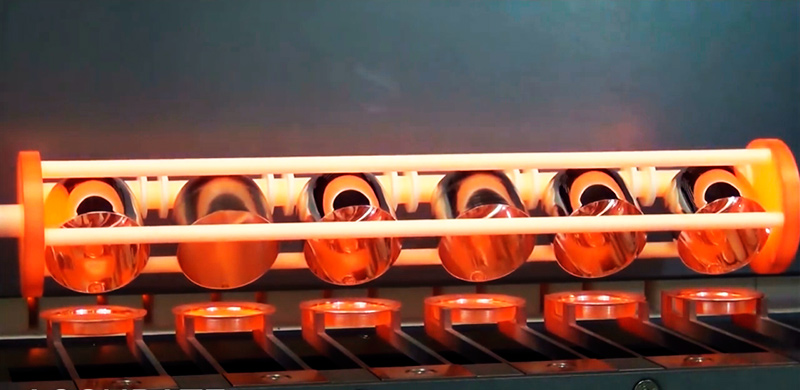

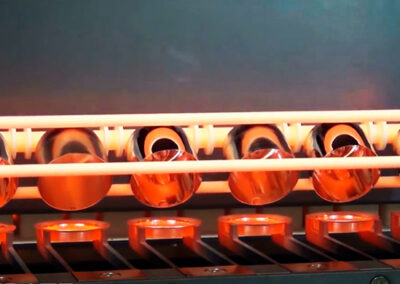

Simultaneous processing of up to six (6) samples
Can prepare glass disks (beads) for XRF, or solutions for ICP, including preparations in peroxide or pyrosulfate
Throughput of up to 30 samples/hour
Fast initial heat-up time of under 15 minutes
Productivity is improved by a user-adjustable holding temperature. Therefore, the temperature between fusions can be maintained to minimize initial ramping time

Safety

No gases used, so no post-combustion toxic products released
Minimal heat dissipation; only a standard vent hood is required

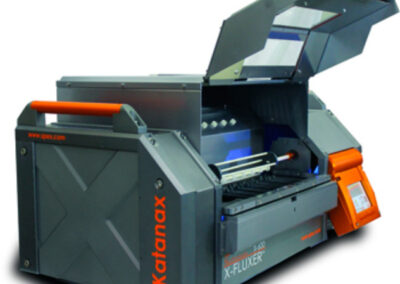

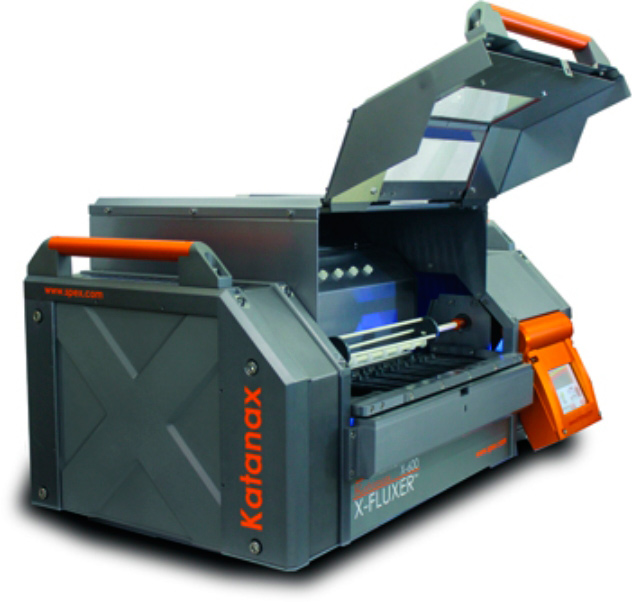

Integrated, auto-locking protection shield with safety glass viewport

Accuracy

Extra-precise temperature control achieved by Dynamic Temperature Profiling (DTP) and automatic individual element power compensation (patents pending).
Entirely automated, cold-to-cold
Fully reproducible fusion methods
Outstanding reproducibility: all crucibles and molds are at the same temperature
Real-time temperature display
Optimum pouring conditions, since the molds are in the furnace with the crucibles

Versatility

Makes glass disks for XRF
Can also make solutions (including peroxide or pyrosulfate fusions without modification)

Optional variable-speed embedded solutions stirrer available
Prepares up to six (6) solutions for ICP or AA
Switching from disk to solution mode is quick and easy

Ready to fuse with built-in methods for oxides, minerals, metals, alloys, sulfides, fluorides and more
Can perform solid or liquid oxidations
Fully customizable fusion methods

Simplicity

A highly optimized, intelligent, advanced furnace
Easy installation

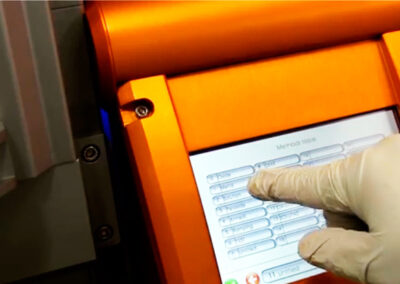

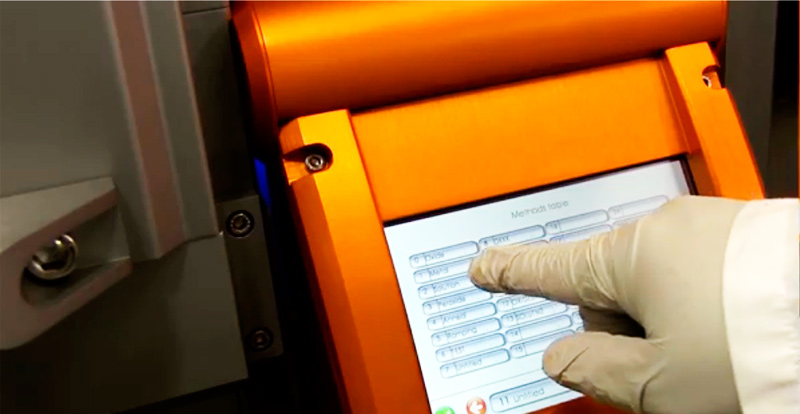

Intuitive graphical interface with multiple languages
Easy icon touch-screen navigation
Virtually maintenance-free; easy component access

Technical specifications

Voltage: 195-250 VAC / (50-60 Hz)
Power (max): 4000 W
Temperature: 50-1200°C
Height: 56 cm [22″]
Width: 105 cm [41″]
Depth: 69 cm [27″]
Mass: 85 kg [187 lbs]

Installation

Installation is fairly simple, just like another lab furnace:

1. Run a wire from the breaker box to the installation site. (You might well have some already installed.)
2. Connect the end of that wire to the included special outlet.
3. Connect instrument to this wall outlet and turn on.
4. Enjoy!
